function D3JSScatterChart({ dHelper }) {
  return {
    //【可选】扩展配置图表功能，可配合`数据视图`对数据处理
    config: {
      datas: [
        {
          label: 'metrics',
          key: 'metrics',
          required: true,
          type: 'group',
        },
        {
          label: 'deminsion',
          key: 'deminsion',
          required: true,
          type: 'aggregate',
        },
      ],
      styles: [
        {
          label: 'common.title',
          key: 'scatter',
          comType: 'group',
          rows: [
            {
              label: 'common.color',
              key: 'color',
              comType: 'fontColor',
            },
          ],
        },
      ],
      i18ns: [
        {
          lang: 'zh-CN',
          translation: {
            common: {
              title: '散点图配置',
              color: '气泡颜色',
            },
          },
        },
        {
          lang: 'en',
          translation: {
            common: {
              title: 'Scatter Setting',
              color: 'Bubble Color',
            },
          },
        },
      ],
    },

    isISOContainer: 'demo-d3js-scatter-chart',

    //【必须】加载D3JS绘图引擎，此处需给出CDN链接或者服务端相对资源地址即可
    dependency: ['https://d3js.org/d3.v5.min.js'],

    //【必须】设置图表的基本信息，icon可从Datart Icon图标中选取，暂时不支持自定义
    meta: {
      id: 'demo-d3js-scatter-chart',
      name: '[Plugin Demo] D3JS 散点图',
      icon: 'sandiantu',
      requirements: [
        {
          group: [0, 999],
          aggregate: 2,
        },
      ],
    },

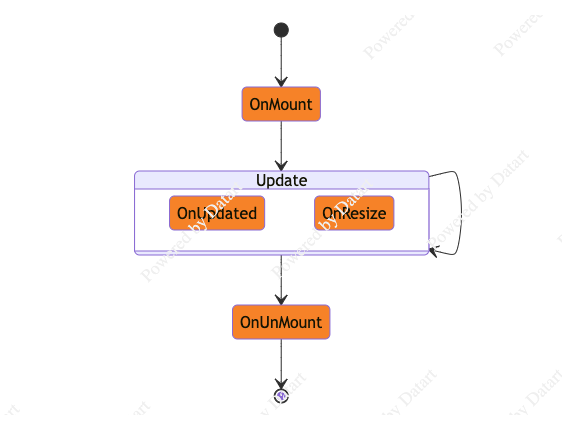

    //【必须】Datart提供的生命周期函数，其他周期如onUpdated，onResize以及onUnMount
    onMount(options, context) {
      if (!context.document) {
        return;
      }

      const host = context.document.getElementById(options.containerId);
      var margin = { top: 10, right: 40, bottom: 30, left: 30 },
        width = context.width - margin.left - margin.right,
        height = context.height - margin.top - margin.bottom;

      // 初始化D3JS绘图区域
      this.chart = context.window.d3
        .select(host)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', 'translate(' + margin.left + ',' + margin.top + ')');
    },

    onUpdated(options, context) {
      if (!options.dataset || !options.dataset.columns || !options.config) {
        return;
      }

      // 获取当前绘图区域的宽高
      const clientWidth = context.window.innerWidth;
      const clientHeight = context.window.innerHeight;
      const margin = { top: 40, right: 40, bottom: 40, left: 40 };
      const width = clientWidth - margin.left - margin.right;
      const height = clientHeight - margin.top - margin.bottom;

      // 获取散点图数据及配置
      const { data, style } = this.getOptions(options.dataset, options.config);

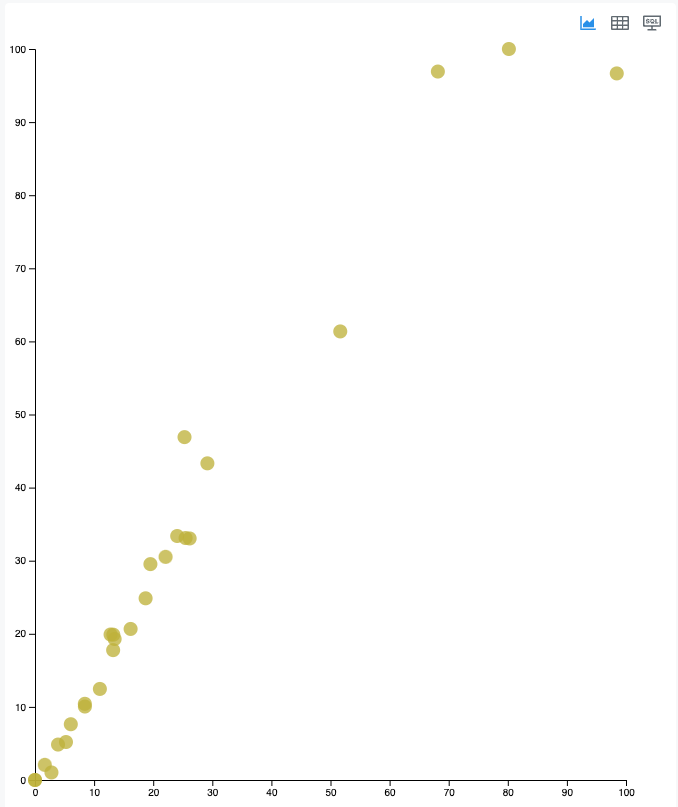

      // 绘制基于百分比的横纵坐标轴散点图, 以下是D3JS绘图逻辑
      var x = context.window.d3
        .scaleLinear()
        .domain([0, 100]) // This is the min and the max of the data: 0 to 100 if percentages
        .range([0, width]); // This is the corresponding value I want in Pixel

      this.chart
        .append('g')
        .attr('transform', 'translate(0,' + height + ')')
        .call(context.window.d3.axisBottom(x));

      // X scale and Axis
      var y = context.window.d3
        .scaleLinear()
        .domain([0, 100]) // This is the min and the max of the data: 0 to 100 if percentages
        .range([height, 0]); // This is the corresponding value I want in Pixel

      this.chart.append('g').call(context.window.d3.axisLeft(y));

      // Add 3 dots for 0, 50 and 100%
      this.chart
        .selectAll('whatever')
        .data(data)
        .enter()
        .append('circle')
        .attr('cx', function (d) {
          return x(d.x);
        })
        .attr('cy', function (d) {
          return y(d.y);
        })
        .style('fill', style.color)
        .attr('r', 7);

      this.chart.selectAll('whatever').style('color', 'blue');
    },

    getOptions(dataset, config) {
      // 当前服务端返回的图表数据集
      const dataConfigs = config.datas || [];

      // 获取样式配置信息
      const styleConfigs = config.styles;
      const groupConfigs = dataConfigs
        .filter(c => c.type === 'group')
        .flatMap(config => config.rows || []);

      // 获取指标类型配置信息
      const aggregateConfigs = dataConfigs
        .filter(c => c.type === 'aggregate')
        .flatMap(config => config.rows || []);

      // 数据转换，根据Datart提供了Helper转换工具
      const objDataColumns = dHelper.transfromToObjectArray(
        dataset.rows,
        dataset.columns,
      );

      const data = objDataColumns.map(dc => {
        return {
          x: dc[dHelper.getValueByColumnKey(aggregateConfigs[0])],
          y: dc[dHelper.getValueByColumnKey(aggregateConfigs[1])],
        };
      });

      var xMinValue = Math.min(...data.map(o => o.x));
      var xMaxValue = Math.max(...data.map(o => o.y));

      var yMinValue = Math.min(...data.map(o => o.y));
      var yMaxValue = Math.max(...data.map(o => o.y));

      // 获取用户配置
      const color = dHelper.getStyleValueByGroup(
        styleConfigs,
        'scatter',
        'color',
      );

      return {
        style: {
          color,
        },
        data: data.map(d => {
          return {
            x: ((d.x || xMinValue - xMinValue) * 100) / (xMaxValue - xMinValue),
            y: ((d.y || yMinValue - yMinValue) * 100) / (yMaxValue - yMinValue),
          };
        }),
      };
    },
  };
}

// Step 1. 首先定义一个国际化设置
i18ns: [
  {
    lang: 'zh',
    translation: {
      common: {
        title: '散点图配置',
        color: '气泡颜色',
      },
    },
  },
  {
    lang: 'en',
    translation: {
      common: {
        title: 'Scatter Setting',
        color: 'Bubble Color',
      },
    },
  },
],
...
// Step 2. 然后，假设我们设置了一个group类型的布局组件，其中包含了一个color类型的子组件
// Step 3. 当设置了label为"common.title"时，显示的名称会根据当前的语言环境设置读取响应的值，
// 例如中文时，color组件显示的名称为‘气泡颜色’，当英文环境时，显示的为‘Bubble Color’
{
  label: 'common.title', // 此处设置国际化文件对象查找路径
  key: 'scatter',
  comType: 'group',
  rows: [
    {
      label: 'common.color',
      key: 'color',
      comType: 'fontColor',
    },
  ],
},

{
  group: [0, 999],
  aggregate: [0, 999],
},
